2017 Mining History Association Tour



Tour of Sumitomo Metal Mining, Pogo Mine
Tour Leaders: Tom Bundtzen at the
Pogo Mine and Mill Staff
June 19, 2017

PHOTO GALLERY 2 of 3
CLICK ON A PHOTO TO DISPLAY A LARGER IMAGE



(Above)  Mine equipment is rubber-tired.  MHAers enjoy the ride in a pick-up/tractor-like rig that easily handles the 12% grades in the mine’s ramp system.

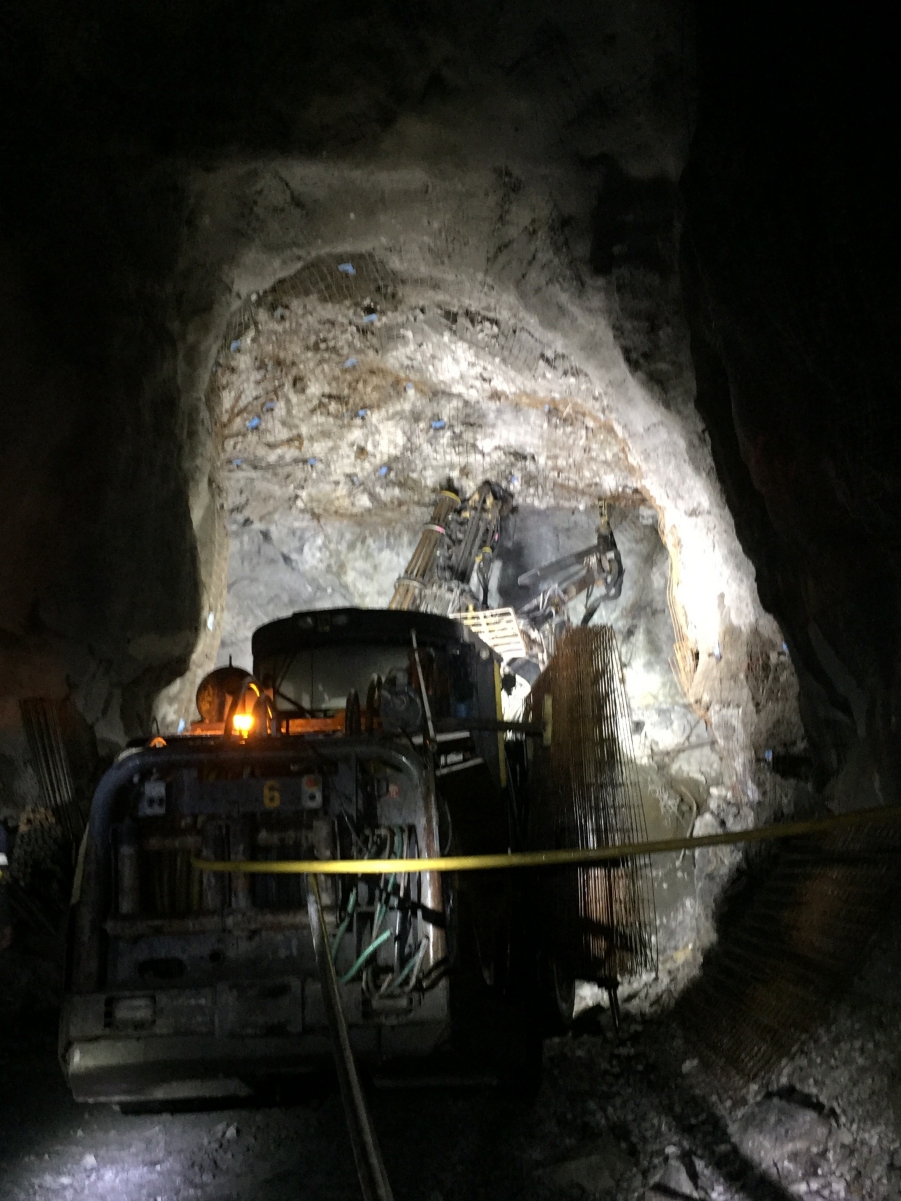

(Right) A mobile bolting machine installs split-set roof bolts and wire mesh to secure the back (roof) and ribs (sides) before the next cut can be made at the rock face.  The operator in a protective cab is able to stay under the supported roof as he drills holes and installs the bolts and mesh.

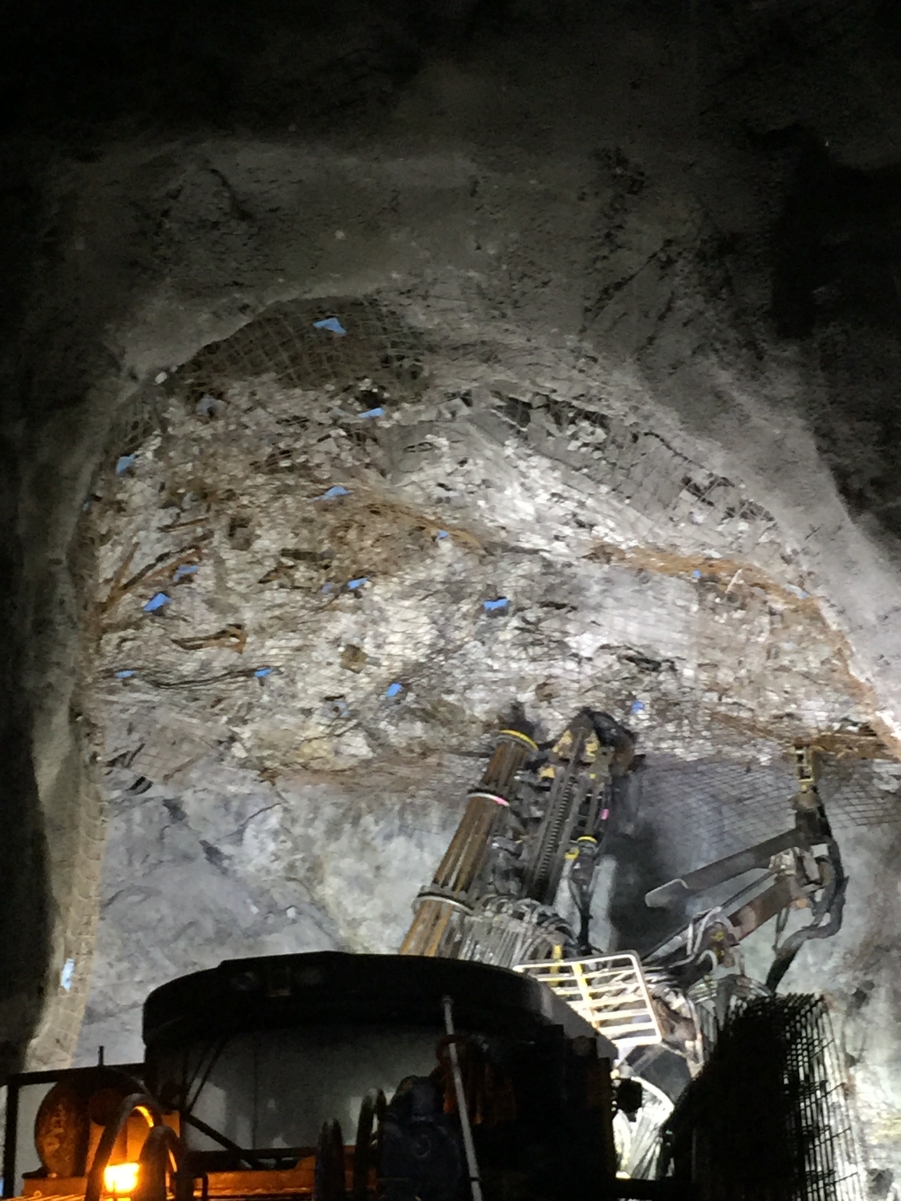

(Left) A close-up view of the bolting process.

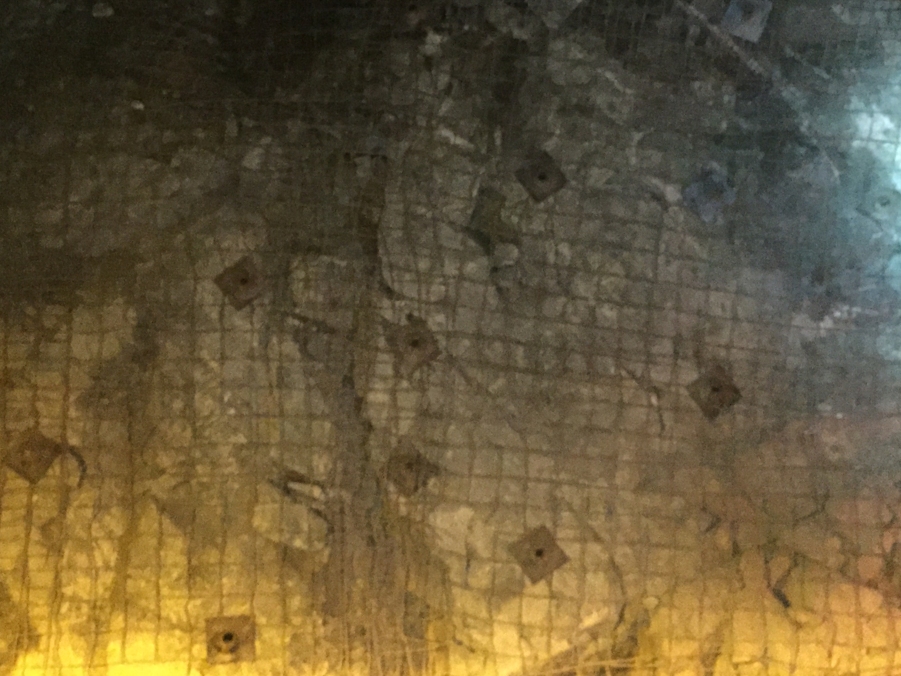

(Above) A view of the back (roof) with the bolts and mesh installed.




Paul Bartos, Karen Jass, and Keith Adamski enjoy a tasty lunch at the Pogo dining room

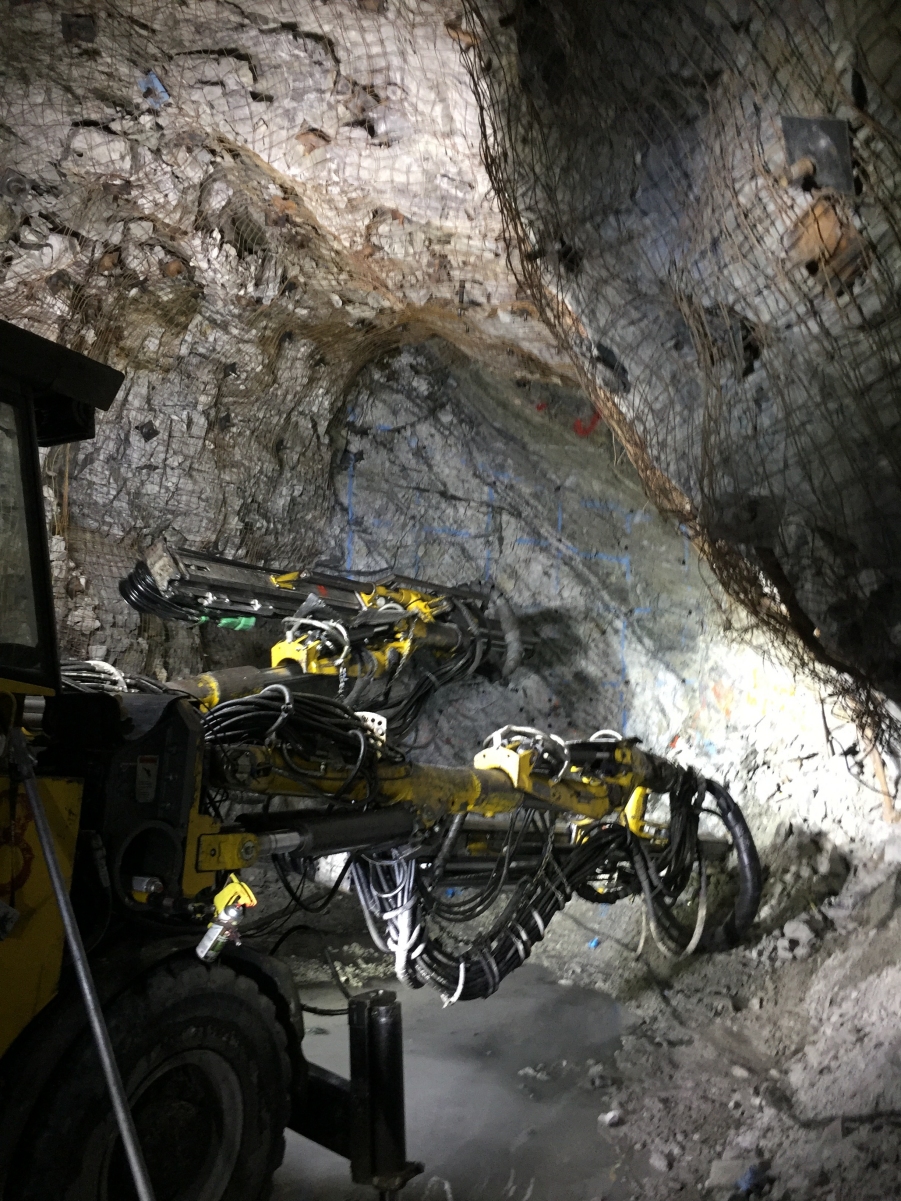

(Left) A rubber-tired drilling jumbo drills holes in the ore for explosives.  The operator controls the drills from the cab following the pattern marked in blue paint on the face by the mine engineers. Each boom of the jumbo operates independently.  Note the roof bolts and wire mesh on the back.

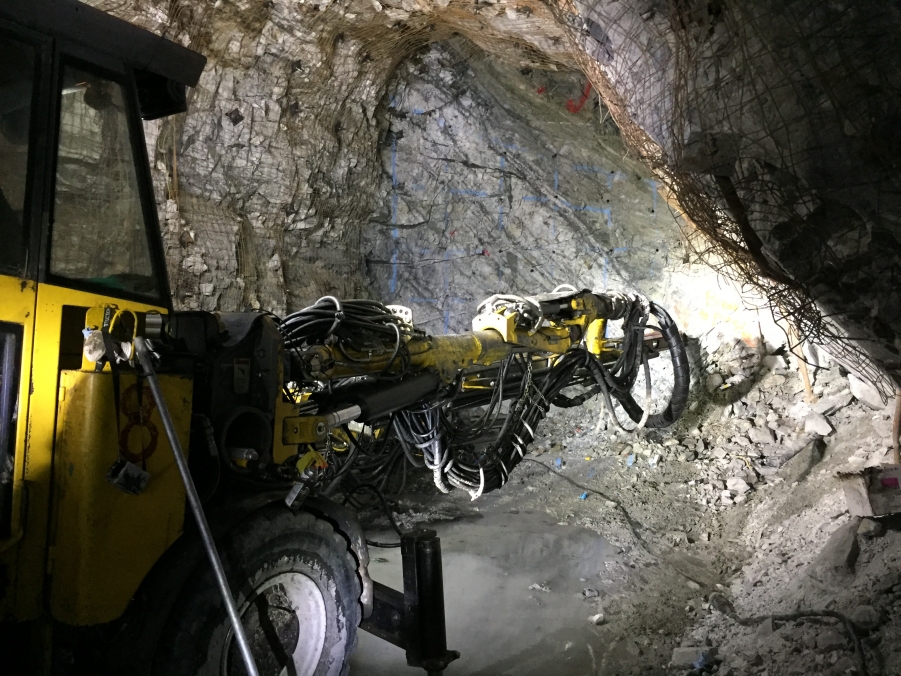

(Above) A close-up view of the drilling process.

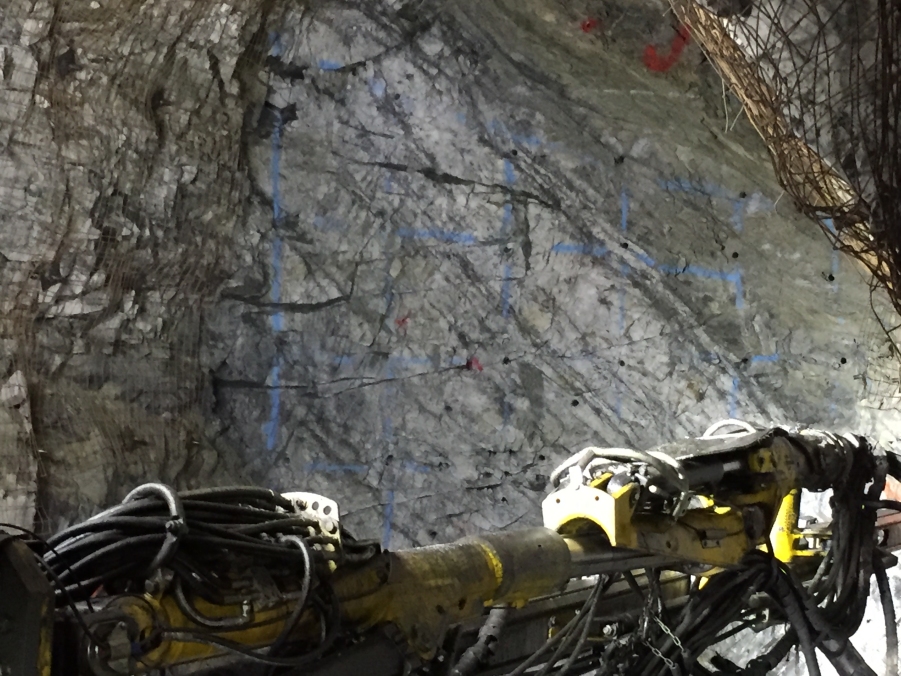

An even closer view shows the white quartz vein crossing the face from the upper left to the lower right.  When the ore has been blasted, loaded, and hauled away, the stope is backfilled with cemented mill tailings.  These become the floor for the stope above as mining the vein continues.

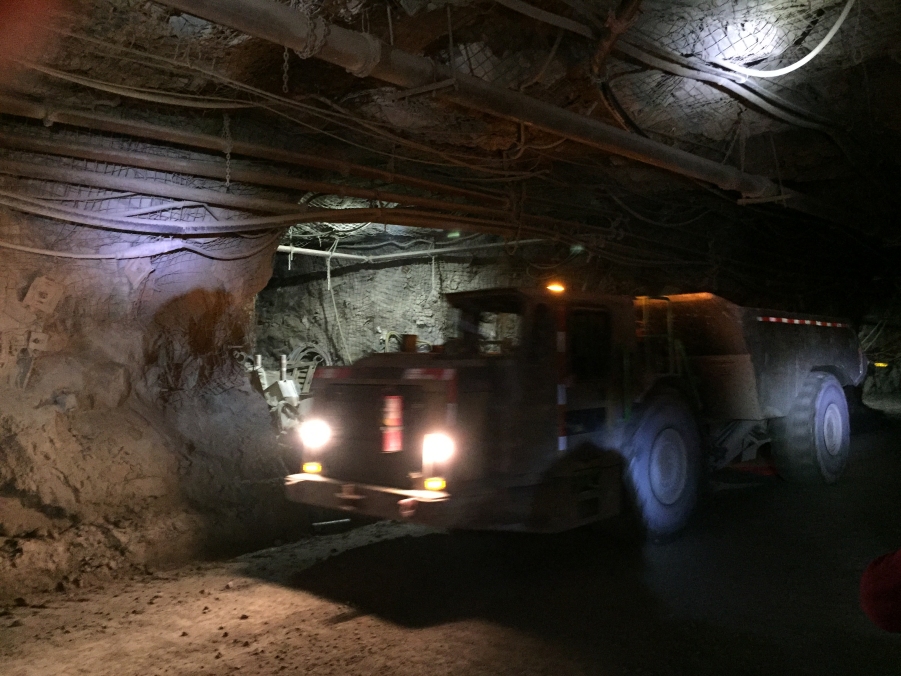

A mine haul truck transports the ore from a stope to an ore pass through which it drops to a lower level.  From there, the ore is conveyed out of the mine and to the mill.



MANY THANKS TO SUMITOMO MINING AND
THE POGO MINE STAFF FOR THEIR EXCELLENT TOUR AND
FOR BEING A SPONSOR OF THE FAIRBANKS MHA CONFERENCE


Photos by Mark and Lynn Langenfeld and Mike and Pat Kaas
